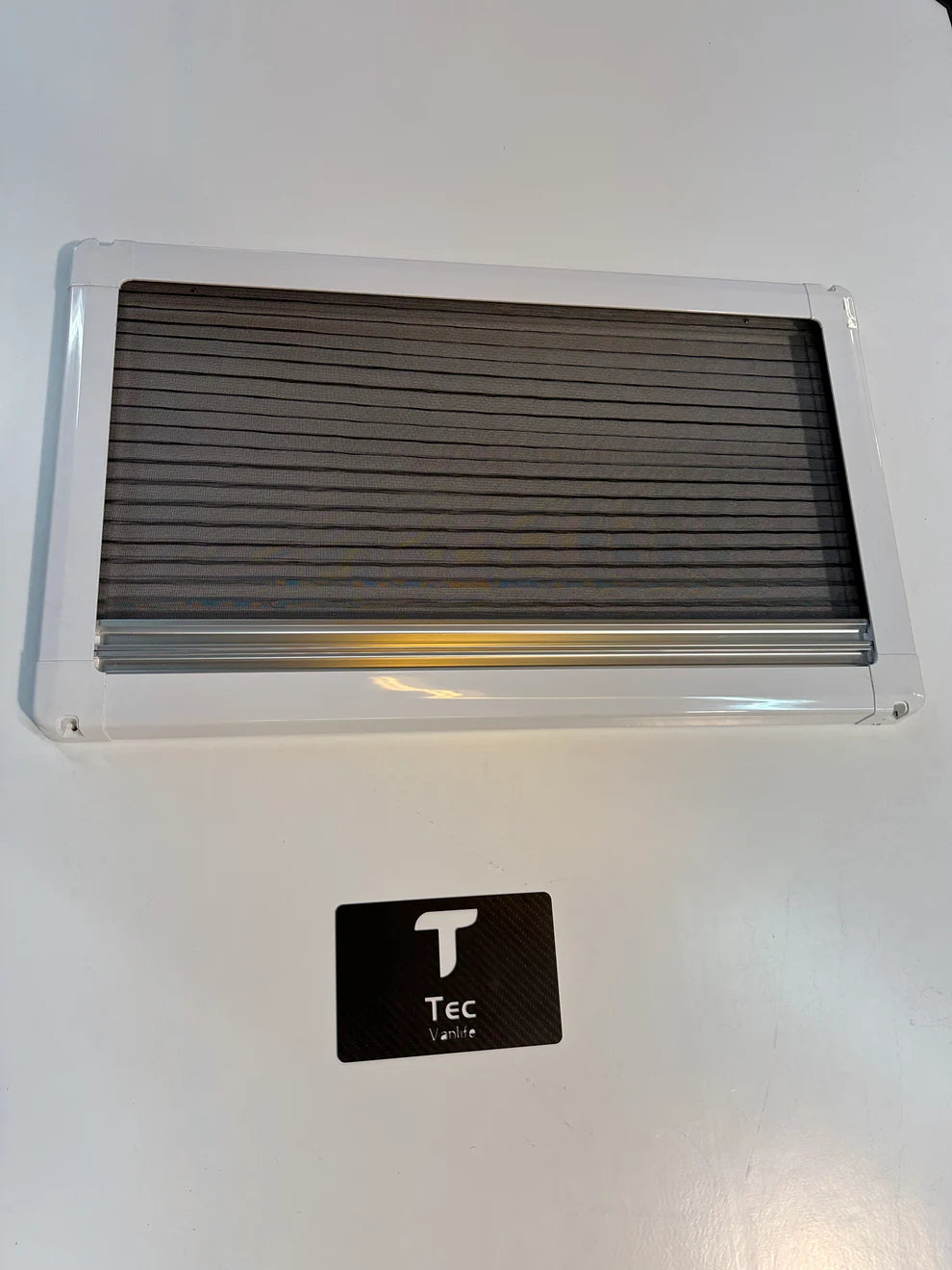

RSC Camper Windows 900mmx450mm/35.43"x17.71"

Elevate your space with RSC Camper Windows, the ultimate window solution offered by Rock Solid Components. Designed to enhance both style and functionality, these windows surpass others in terms of features and quality.

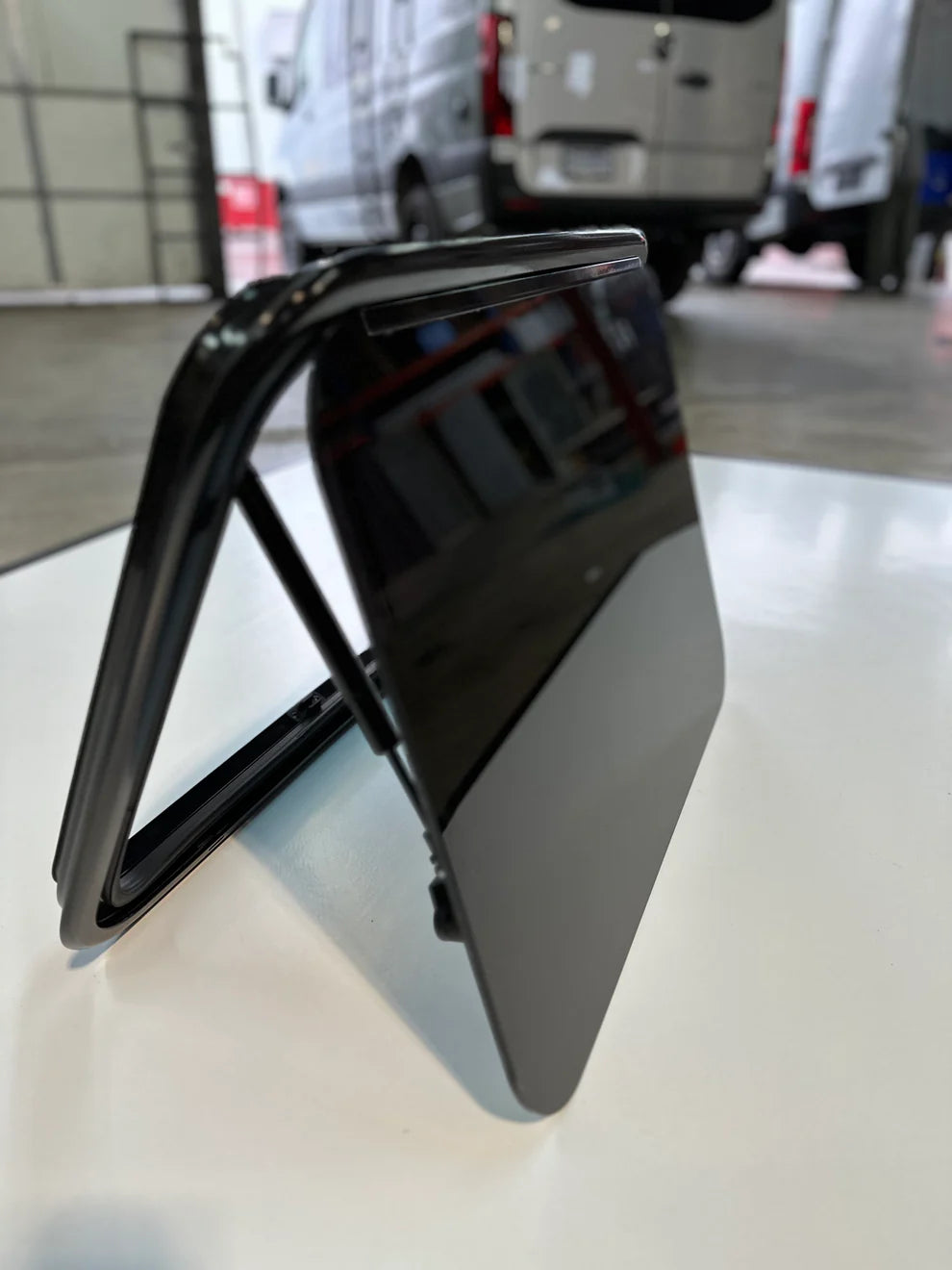

Enjoy complete control over light and ventilation levels with the hydraulic struts featured in these windows. The hydraulic struts are built to withstand up to 20,000 uses, ensuring long-lasting reliability.

The RSC Flat Windows boast heavy-duty powder-coated aluminum alloy frames, providing a strong and durable hold. The window handle is crafted from sturdy plastic, while the handles for the insulated blinds and bug screens are made of aluminum, adding elegance and durability to the design.

Protection against harsh weather conditions and drafts is paramount, and that's why the RSC Flat Windows are equipped with insulated UV-resistant acrylic double-pane glazing and high-quality rubber seals. The insulation blinds and bug screens offer complete protection from pests and insulation from external elements, guaranteeing a comfortable and pest-free environment.

Rest easy with the full 1-year manufacturer's warranty, knowing that your investment is built to endure. Upgrade your space today with the trusted and reliable RSC Flat Windows, and experience the unparalleled quality, durability, and style that Rock Solid Components is renowned for.

Flat Window Specifications:

Dimension: 900mmx450mm/35.43"x17.71"
Suitable for wall thicknesses ranging from 0mm to 29mm.
For wall thickness between 0mm-5mm:

Installation Guide:

Prepare the window frame and mark the cutout line.

Remove the rubber gasket from the window frame, ensuring a clean surface for adhesion. Position the window on the wall and draw the cutout line. Cut the opening using an air jig saw (recommended).

Apply the adhesive:

Apply windshield urethane adhesive along the inner edge of the window frame.
Ensure sufficient adhesive is applied for a strong bond. Use duct tape to cover the surrounding cutout area, allowing excess adhesive to be removed with the tape.

Position the window:

Carefully place the window frame into the cutout. Press the window firmly against the wall, ensuring proper contact with the adhesive.

Secure the window:

Use temporary supports or tape to hold the window in place while the adhesive cures, following the manufacturer's recommendations.

Clean up:

Use a paper towel or lacquer thinner to wipe away any excess adhesive that may have squeezed out from the edges of the window frame.

Allow curing time:

Leave the window undisturbed for the recommended curing time specified by the adhesive manufacturer.

Test the installation:

Once the adhesive has fully cured, check the window for stability and proper sealing, ensuring no gaps or leaks around the edges.

For wall thickness between 6mm-19mm:

Position the window on the wall and draw the cutout line. Cut the opening using an air jig saw (recommended).

Cut wood shims to the required thickness to fill the gap between the window inner frame and the wall. Insert the wood shims between the window inner frame and the wall, adjusting for a snug fit.

Use the trim ring:
Install the window inner trim to securely clamp the window against the wall.

For wall thickness between 20mm-29mm:

Position the window on the wall and mark the cutout line.

Cut the opening using an air jig saw (recommended).

Carefully place the window frame into the opening
. Install the window inner trim to securely clamp the window against the wall.
Choose RSC Flat Windows for a superior window solution that combines style, durability, and functionality.
